Tuning Machine Open Frame 3+3

Open Frame Acoustic Guitar Tuning Machine 3+3 Gold

Tuning Machine Open Frame 3+3 - Image 1 of 0
Tuning Machine Open Frame 3+3 - Image 2 of 0
Tuning Machine Open Frame 3+3 - Image 3 of 0
Tuning Machine Open Frame 3+3 - Image 1 of 0
Tuning Machine Open Frame 3+3 - Image 2 of 0
Tuning Machine Open Frame 3+3 - Image 3 of 0
Tuning Machine Open Frame 3+3 - Image 4 of 0
Tuning Machine Open Frame 3+3 - Image 1 of 0
Tuning Machine Open Frame 3+3 - Image 2 of 0
Tuning Machine Open Frame 3+3 - Image 3 of 0
Tuning Machine Open Frame 3+3 - Image 4 of 0
Tuning Machine Open Frame 3+3 - Image 5 of 0

Acoustic Tuning Machines Open Frame Custom Shop 3 Plus 3 Gold

Bitterroot Guitars
0 Reviews
List Price: $99.99
$0.00
Savings: $0.00
Part Number: 080245GD
UPC Code: 752785114334
Usually Ships in 1 to 2 Business Days
Quantity in Stock: 7 in stock!

OPEN FRAME ACOUSTIC GUITAR TUNERS

3 PLUS 3 SET FOR GUITAR

Bitterroot Custom Shop Brand Guitar Open Frame Tuning Machines. Our custom shop tuners are used on our custom build guitars. These are an excellent quality tuner at a very reasonable price.

3 Right Hand and 3 Left Hand Configuration. Works for acoustic guitars.

3 Plus 3 Setup for Guitars

Custom shop open frame tuners.

15:1 ratio

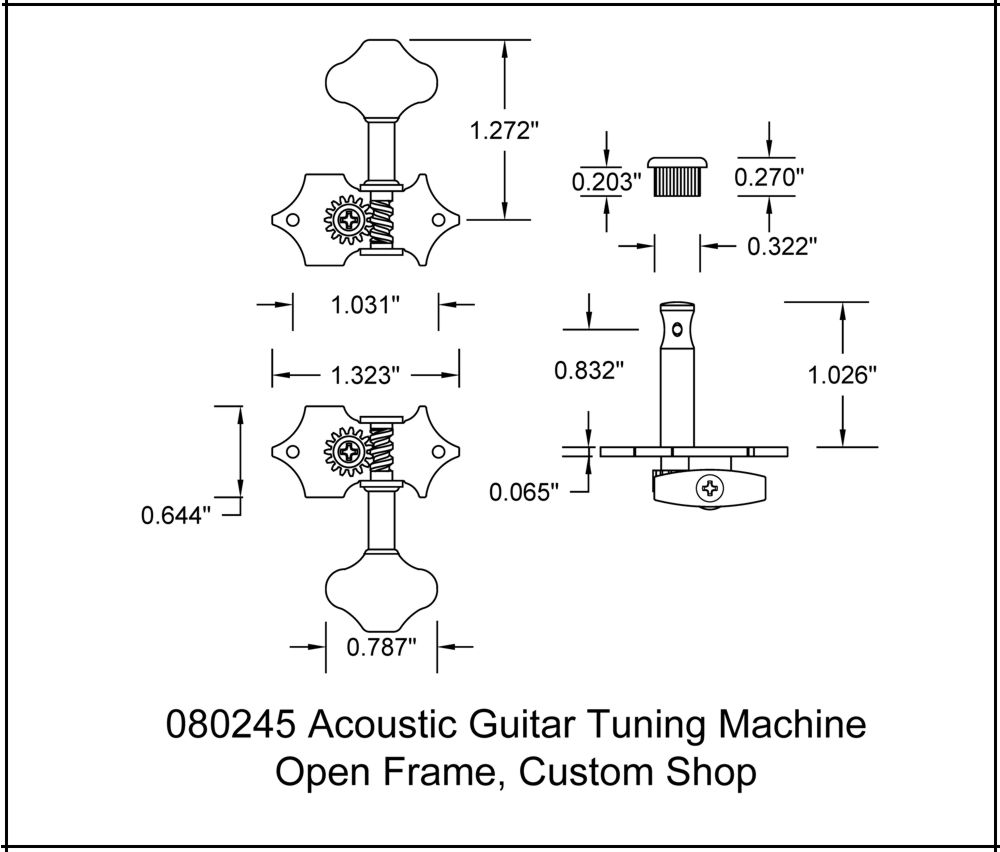

Specifications:

15 to 1 gear ratio, Open Frame Gold tuners with Gold Butterbean Knobs.

Knob Size is 20mm (25/32")

Mounting Hole size is 8mm (5/16")

Body Size 1 21/64" (33.6mm) x 41/64" (16.3mm)

Press fit Bushing for 8mm mounting hole (5.16")

Shaft Length (Body to tip) 1 1/64" (26mm)
Mounting hole spacing 1.1/32" (26.2mm)

Polished Butterbean Gold, knob is screw replaceable type.

Gear Ratio 15:1

Kit includes:

3 Right Hand and 3 Left Hand Locking Tuning Machines with Bushing, 12 mounting screws.

Note: (Use #50 drill to seat mounting screws)
